2020 DIGITAL LINE – Smart Amplifiers

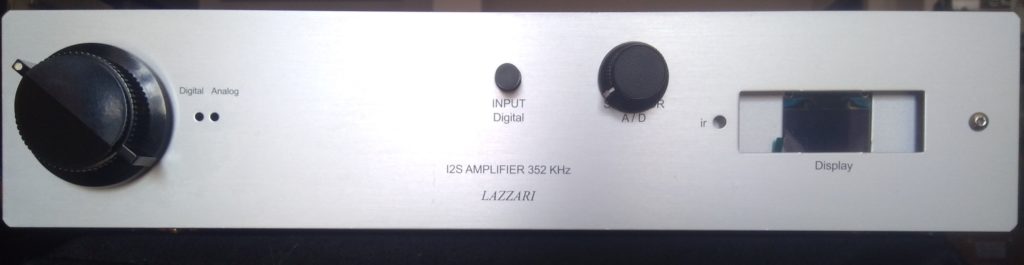

Digital Analog Amp

Analog Features:

  • Stereo from 175 W to 4 Ω in BTL configuration
  • Stereo from 220 W to 3 Ω in BTL configuration
  • 350-W Mono in 2 Ω in the PBTL configuration
  • Total output power at 1% THD + N
  • Stereo 140-W in 4 Ω in BTL configuration
  • Stereo from 175 W to 3 Ω in BTL configuration
  • 285-W Mono in 2 Ω in the PBTL configuration
  • Advanced integrated closed circuit design
  • UltraLow0.01% THD + Nat1WInto4Ω
  • <0.01% THD + N
  • 60 dB PSRR (BTL, no input signal)
  • <95 μV Output noise (A-weighted)
  • -> 108 dB SNR (A-weighted)
  • I2C software mode control
  • Address Select Pin
  • Efficient operation at 90% (4 Ω)
  • Operation in 36 V supply voltage
  • Integrated protection with error reporting: Undervoltage, Current limit cycle by cycle, Short circuit, Clipping detection, Overtemperature warning and shutdown and Speake 32-bit, 384-kHz, 114-dB Stereo Audio

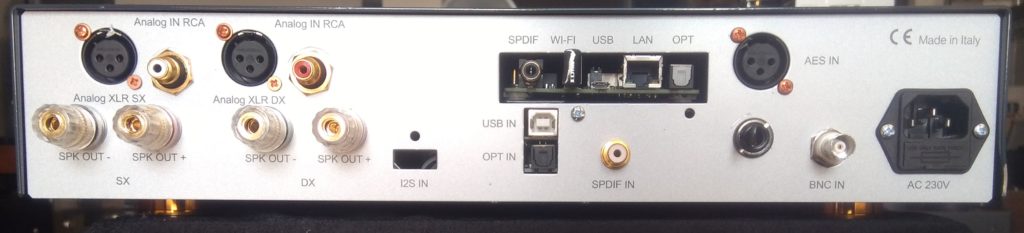

  • Inputs:
    1 Balance
    1 RCA
    1 Phono MM
    1 Streaming

Digital Features:

• Differential outputs on the ground
• Excellent out of band noise
• Latency and digital filter performance selectable
• Does not use DC blocking capacitors
• Intelligent muting system; Soft Up or Down Ramp and Analog Mute for 120dB Mute SNR
• Integrated high performance audio PLL with BCK reference to generate SCK internally
• Accepts 16, 24 and 32 bit audio data
• PCM DSD data formats: I2S,
• SPI or I2C control
• Software configuration

Inputs
1 SPDIF
1 USB
1 OPT
1 BNC
1 AES


STEREO VERSION Price Vat included: € 3.500,00

DUAL MONO VERSION Price Vat included: € 5.500,00
